Poland's accelerated transition toward renewable energy integration, heavy-fleet electromobility, and telecommunications grid modernization has reshaped criteria for direct current (DC) power procurement. Selecting an elite modular DC supplier requires evaluating technical parameter flexibilities, hot-swappable N+1 redundancy architectures, and compliance with Central European electrical grid standards (EN 50160). This industry whitepaper analyzes top-tier modular DC technologies, local implementation frameworks in Poland, and technical sizing guidelines for utility and OEM decision-makers.
96.5%
Peak SiC Efficiency
38+
Years Engineering Lineage
IP67
Environmental Rating
Essential Modular DC Power Systems for the Polish Market
Below are 8 core modular DC power supply platforms engineered for heavy-duty charging corridors, telecom backup, switchgear protection, and industrial purification applications across Poland.

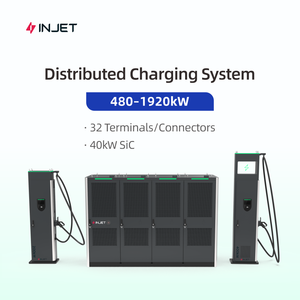

Injet HanYuan 480kW-1920kW SiC Modular DC Charging Stack
Power: 480kW–1920kW | Tech: SiC Matrix | Protocol: OCPP 2.0.1
Ultra-high power supercharging stack utilizing Silicon Carbide (SiC) modules with full matrix dynamic power allocation. Designed for highway hub sites along Poland's A1, A2, and A4 motorways.
Contact Us

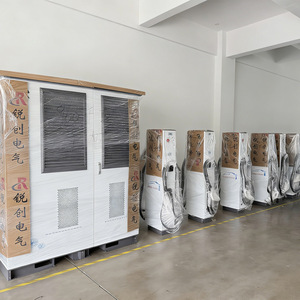

360kW-960kW Split-Type Modular Charging Stack
Power: 360kW–960kW | Type: Split Flexible | Cooling: Air/Liquid
Flexible power cabinet deployment featuring split-type dynamic power distribution for urban e-bus depots in Warsaw, Kraków, and Wrocław.
Contact Us

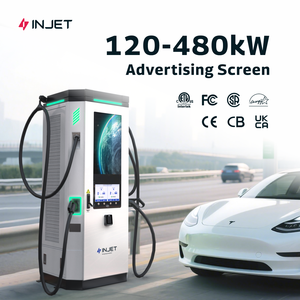

INJET HanHui 120-480kW Multi-Standard Modular DC Charger
Standards: CCS2 / NACS / GBT | Cooling: Liquid/Air | Efficiency: >96%
High-speed energy conversion platform supporting European CCS2 standards with advanced liquid cooling options for zero-thermal-throttling operation.
Contact Us

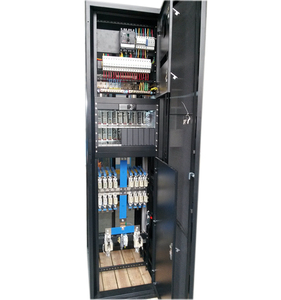

Industrial 48V AC-DC Telecom Modular Power System
Output: 48VDC Nominal | Modular: Hot-swappable | Comms: SNMP/Modbus
High-efficiency, stable-voltage industrial rectifiers tailored for critical 48V telecommunications base stations and data transport hubs across Poland.
Contact Us

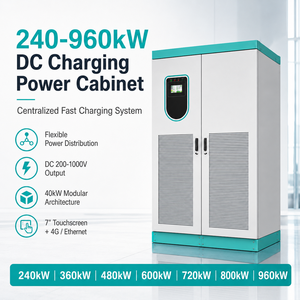

200V-1000V Wide Voltage Modular Fleet Power Cabinet
Voltage Range: 200V–1000V | Power: Up to 960kW | Grid Compliance: CE Certified
Wide output voltage cabinet engineered for next-generation 800V passenger EVs and commercial logistics fleets operating in logistics parks around Poznań.
Contact Us

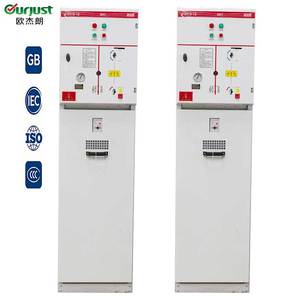

MV/LV Modular DC Switchgear & Relay Distribution Board
Enclosure: IP40 Switchgear | Insulation: Epoxy Resin | Duty: Substation Protection
Medium/low voltage relay enclosure built with epoxy resin insulators for reliable switchgear tripping and control energy in regional electrical distribution centers.
Contact Us
Heavy-Duty 120V Modular AC/DC Industrial Purification Supply
Output: 120V DC Heavy Load | Topology: High Current Rectifier | Rating: Industrial Grade
Specialized industrial power module designed for continuous heavy-load electro-purification, chemical processing, and mining infrastructure in Silesia.
Contact Us
Custom OEM/ODM IP67 Aluminum Alloy Power Distribution System
Protection: IP67 Waterproof | Material: Anodized Aluminum | Cert: CE Certified
Ruggedized aluminum distribution unit rated up to 10kV applications, optimized for harsh ambient environments and outdoor utility cabinets.
Contact Us
Poland's DC Power Market: Regional Trends & Technical Demands
The demand for modular DC power systems in Poland is expanding rapidly, driven by the Polish National Climate and Energy Plan (KPEiN) and aggressive electromobility mandates under the EU AFIR (Alternative Fuels Infrastructure Regulation). As one of Central Europe's crucial industrial and transit hubs, Poland presents distinct environmental and electrical challenges that suppliers must address:
Sub-Zero Winter Resiliency
Central European winters routinely experience temperatures dropping below -20°C. Modular DC supplies must feature cold-start capability, internal condensation control via PTC heaters, and temperature-compensated charging profiles to safeguard lithium-ion and lead-acid battery banks.
Grid Code Compliance (PSE S.A.)
Integration with Poland's national grid operator (Polskie Sieci Elektroenergetyczne) mandates strict Total Harmonic Distortion (THDi < 5%) and low power factor deviation. Advanced active PFC rectifiers prevent voltage instability on distribution networks.
Modbus / DNP3 SCADA Integration
Polish industrial and municipal buyers require complete visibility into power health. Modular DC plant controllers must output native Modbus TCP/RTU, DNP3, and SNMP telemetry directly into centralized dispatch systems.
Engineering Insight for Procurement Managers: Deploying modular charging cabinets with hot-swappable Silicon Carbide (SiC) modules allows Polish station operators to scale power output from 120kW to 960kW incrementally, matching localized grid upgrades without replacing core infrastructure.
Modular DC Architecture Sizing Matrix for Systems Engineers
Selecting between centralized charging stacks, standalone DC UPS, and industrial AC-DC rectifiers depends heavily on duty cycle, maintenance accessibility, and ambient conditions. Use this reference matrix during preliminary design reviews:
| DC Architecture |
Primary Polish Application |
Efficiency & THD |
Redundancy Strategy |
SCADA / Remote Comms |
| SiC Dynamic Supercharging Stack |
Highway Charging Plazas (A1/A2/A4), Bus Depots |
> 96.5% peak / THDi < 3% |
Full Matrix Dynamic N+1 Module Allocation |
OCPP 2.0.1 Json, Ethernet, 4G, Modbus TCP |
| Split-Type Flexible DC Cabinet |
Urban Logistics Depots (Warsaw, Poznań) |
95.8% / THDi < 5% |
Modular Power Cabinet Redundancy |
Modbus TCP, OCPP 1.6J / 2.0.1 |
| Substation DC UPS & Relay Supply |
Medium Voltage Switchgear, PSE Substations |
94.5% / Low Ripple < 0.5% |
N+1 Hot-Swappable Rectifier Shelves |
DNP3 Serial/TCP, Modbus RTU, Dry Contacts |
| Heavy Load Industrial Rectifier |
Chemical Purification & Mining (Silesia) |
95.0% continuous heavy load |
Parallel Module Load Sharing |
Modbus RTU, 4-20mA Analog Telemetry |
Enterprise OEM Competence: Why Partner with Our Engineering Group
With over 38 years of experience in power conversion engineering, our organization combines global manufacturing scale with strict adherence to European quality standards. We do not simply supply power modules; we engineer fully integrated, custom-tailored DC backbones designed for zero unscheduled downtime.
ISO 9001:2015 Quality & Factory Acceptance Testing
Every modular DC stack undergoes rigorous Factory Acceptance Testing (FAT), including full thermal chamber profiling, insulation resistance checks up to 10kV, and harmonic distortion verification before shipment to Polish job sites.
Silicon Carbide (SiC) Power Density Leadership
Our latest SiC modular rectifiers achieve an industry-leading power density, reducing cabinet footprint by up to 35% compared to traditional legacy IGBT topologies—saving valuable real estate in dense urban Polish substations and charging hubs.
Frequently Asked Questions for Polish Buyers
Common technical and commercial inquiries from EPC contractors, system integrators, and industrial site managers in Poland.
What certifications are mandatory for importing and installing modular DC chargers in Poland?
Modular DC equipment imported into Poland must carry CE marking, comply with Low Voltage Directive (LVD 2014/35/EU) and Electromagnetic Compatibility (EMC 2014/30/EU) directive. Electric vehicle chargers specifically require compliance with IEC 61851-1/23/24, ISO 15118 for automated communication, and UDT (Urząd Dozoru Technicznego) audit readiness for public grid safety connection.
How does Silicon Carbide (SiC) technology reduce total cost of ownership (TCO) for Polish fleet operators?
SiC power modules operate at higher switching frequencies with significantly reduced switching losses. This improves overall system conversion efficiency from 94% up to 96.5%+. For a 960kW charging depot operating 14 hours daily, this 2.5% efficiency improvement yields thousands of Euros in annual energy savings on Polish commercial electricity tariffs.
Can these modular DC power supplies operate under extreme winter temperatures in Eastern Poland?
Yes. Systems designated for Central and Eastern Europe are fitted with ambient monitoring circuits, conformal-coated internal PCBs to resist moisture/salt corrosion, and automatic cabinet heating elements that preserve optimal operating conditions down to -30°C ambient temperatures.
What is the advantage of full matrix dynamic power allocation over fixed power splitting?
Fixed power splitting assigns dedicated power paths (e.g., 2 x 180kW), which wastes available energy if one vehicle reaches a high state of charge (SoC) and reduces its intake. Full matrix dynamic power allocation automatically reassigns 20kW or 30kW internal module increments to active charging dispensers in real-time, maximizing overall station throughput.
What support and spare parts availability are guaranteed post-dispatch?
We provide documented 15-to-20 year lifecycle support plans. Because modules are standardized hot-swappable units, replacement modules can be shipped directly from regional hubs, allowing local technicians in Poland to swap modules in under 15 minutes without shutting down the entire rack.
Need Custom Modular DC Engineering for Your Polish Project?
Submit your electrical specification, required power curve, and protocol integration requirements to our senior application engineering team.
