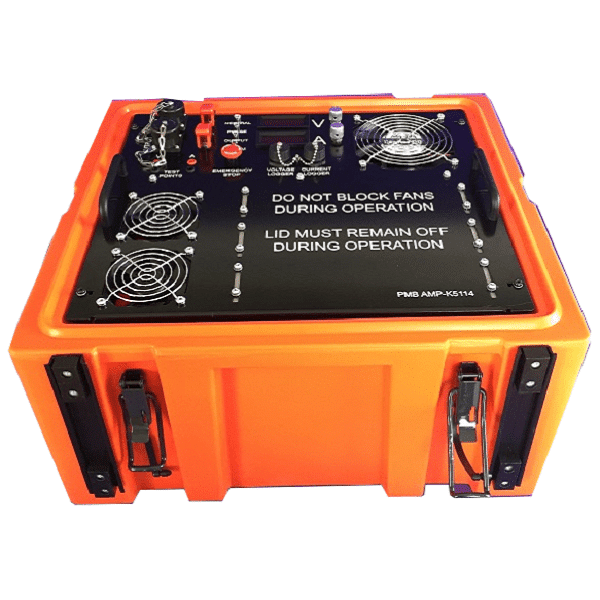

7kW 3-Phase Rugged Battery Charger (AMP-K5114)
Engineered for naval base and maritime submarine support operations. Features a heavy-duty portable enclosure, 3-phase AC input, temperature-compensated charging, and rugged shock mitigation.
Global Engineering Expertise
Custom AC & DC Power Conversion & Backup Systems
Nearly 40 years of application-specific engineering experience enables Helios Power Solutions to solve complex electrical challenges where commercial off-the-shelf units fail. Over 50% of the power systems we manufacture are engineered to bespoke customer specifications.
Over 2,000 Custom Power Designs Manufactured & Field-Proven Worldwide
Why Engineering Leaders Partner With Us
Solving Power Specification Mismatches
Standard datasheets rarely align perfectly with tough field realities. Harsh operating ambients, restrictive mechanical footprints, specialized battery chemistry charging, and complex SCADA alarm mappings require dedicated engineering solutions.
- Electrical Engineering: Custom input/output voltage rating, ultra-low ripple, N+1 redundancy, and extended hold-up times.
- Mechanical Customization: 1U to 42U rackmount enclosures, wall-mount chassis, outdoor NEMA/IP-rated cabinets, and shock/vibration mitigation.
- SCADA & Comms Integration: DNP3, Modbus RTU/TCP, SNMP v2c/v3, and user-configurable volt-free alarm contacts.
- Environmental Protection: Tropicalization, conformal-coated PCBs, wide operating temperatures (-40°C to +75°C), and rugged military hardening.
Product Architectures
Custom System Capabilities & Categories
Explore our foundational engineering platforms modified to fit exact electrical, environmental, and physical installation requirements.
Battery Chargers

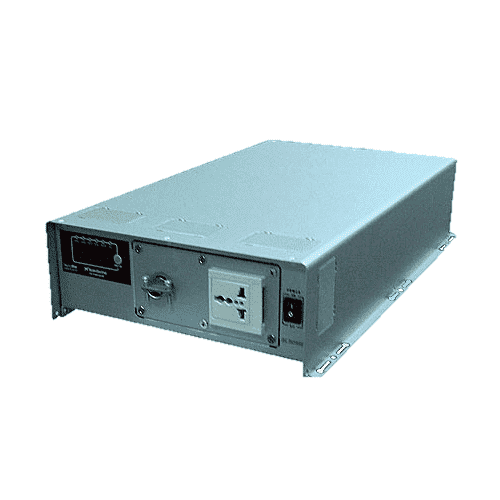

Inverters

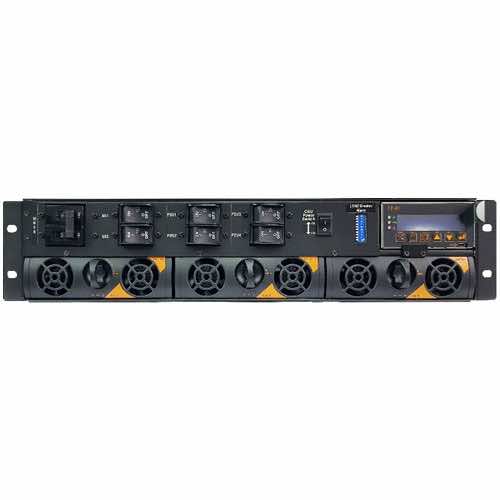

Power Distribution

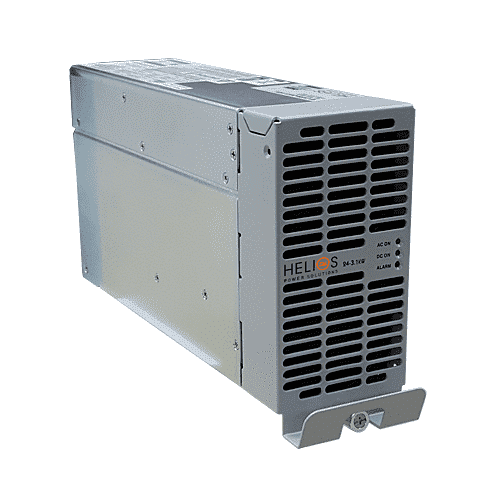

Rectifiers
The Sol Series

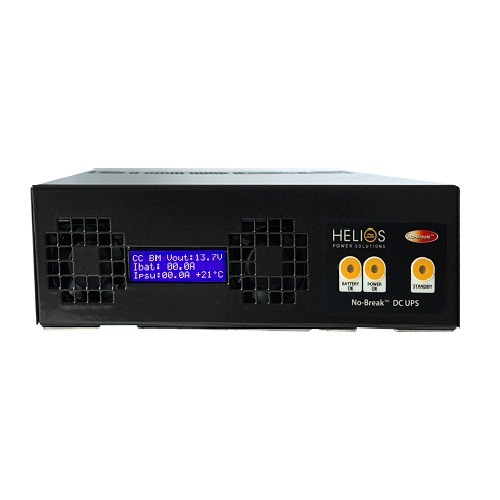

DC UPS Systems
Proven Case Studies & Hardware
Featured Custom Engineering Projects
Designed, verified, and shipped for utility, defence, and critical infrastructure projects globally.

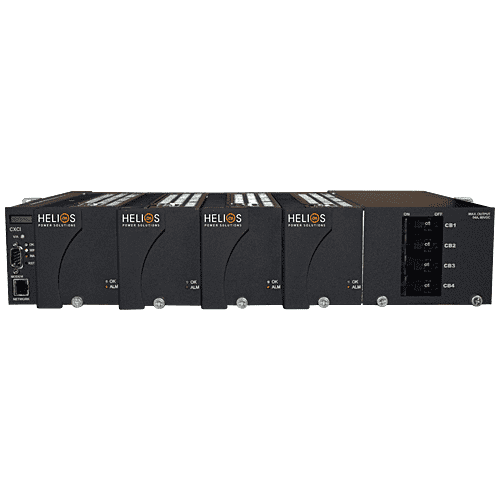

250W to 18kW DC Power Platform (The Sol Series)
Convection-cooled modular DC backup power system. Supports float/boost lead-acid, NiCd, or LiFePO4 batteries with hot-swappable rectifiers, smart controller monitoring, and multi-bus distribution.
700W 1U Military-Grade Power System (AMP-K5896)
Ultra-compact 1U rackmount power distribution unit engineered to MIL-STD specifications. Features multi-output DC voltage rails, internal EMI filtering, and extreme operating temperature resilience.
Technical Parameters
Engineering Scope & Specification Options
Consult our system engineering parameter matrix when preparing technical bid requests or custom project specifications.
| Design Parameter | Standard Ranges | Custom Engineering Possibilities | Target Applications |
|---|---|---|---|
| DC Output Voltage | 12V, 24V, 48V, 110V, 125V, 220V VDC | Any non-standard voltage (e.g., 36V, 72V, 160V VDC), adjustable float/boost curves | Substation switchgear tripping, railway signaling, telecommunications |
| AC / DC Inputs | Single-phase 110/230VAC, 3-Phase 400/480VAC | Wide input range (+/- 25%), universal DC input, dual redundant AC inputs | Remote mining, offshore oil & gas, mobile generator backup |
| Monitoring & Control | Volt-free dry contacts, LED status indicators | Integrated smart controllers with DNP3 (serial/TCP), Modbus RTU/TCP, SNMP v3 | Utilities SCADA, industrial automation, remote RTU monitoring |
| Mechanical Enclosures | Open frame, DIN rail, standard 19" subracks | IP54 / IP65 NEMA cabinets, custom chassis dimensions, shock & vibration mounting | Defence field deployables, outdoor roadside cabinets, marine engine rooms |
| Environmental Hardening | Standard industrial 0°C to 50°C | Conformal coating (HumiSeal), extended temperature (-40°C to +75°C), high altitude rating | Sub-zero climates, tropical/coastal high humidity, high-vibration vehicles |
Quality Assurance
ISO 9001:2015 Certified Manufacturing & FAT Validation
Every engineered system undergoes full quality verification before leaving our regional production facilities in Australia and New Zealand.
We provide full documentation packs, as-built electrical schematics, factory test certificates, and client-witnessed Factory Acceptance Testing (FAT) for full regulatory and technical peace of mind.
Full Technical Compliance
- ISO 9001:2015 accredited design & manufacturing process
- Electrical safety testing (IEC / EN 62368-1, IEC 60950)
- EMC compliance verification (EN 55032, MIL-STD-461)
- Factory Acceptance Testing (FAT) witnessed on-site or via web stream
- As-built CAD drawings, 3D STEP files & SCADA point lists included
Technical Procurement FAQ
Custom Power Solutions Questions
Helios engineers electrical re-ratings (custom DC/AC voltages, current capacities, hold-up times), enclosure customizations (IP rating, 19-inch rack, wall mount, shock/vibration mitigation), conformal coating for hostile environments, and protocol mapping (DNP3, Modbus RTU/TCP, SNMP, dry contacts) for seamless SCADA integration.
Every custom power design undergoes stringent in-house testing governed by our ISO 9001:2015 quality system. Options include full Factory Acceptance Testing (FAT) witnessed in-person or remotely, thermal stress testing, full load burn-in, dielectric isolation testing, and protocol verification against customer SCADA configurations.
Our custom power systems are widely deployed in Electrical Power Utilities, Defence & Military platforms, Railway Signal & Traction control, Oil & Gas offshore infrastructure, Remote Telecommunications, and OEM heavy industry automation.
Lead times vary depending on the complexity of mechanical fabrication and component sourcing. Minor modifications to standard platforms take as little as 2 to 4 weeks, while fully customized MIL-spec or complex multi-cabinet power plants are delivered within engineered project schedules.
Discuss Your Custom Electrical Specification With Our Engineering Team
Send us your system load profile, voltage tolerances, physical constraints, and communications requirements for an architectural design review.
